Характеристики

Applicable Industries: Manufacturing Plant, Construction worksÂ , Glass Processing Industry

Showroom Location: None

Condition: New

Machine Type: Glass Tempering Furnace

Production Capacity: 15-18 loads/h

Voltage: 380v

Power: Depends on the model

Dimension(L*W*H): Different by size

Weight: kg

Warranty: 1 Year

Key Selling Points: Energy saving

Glass Thickness: 4-19mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2019

Warranty of core components: 1 Year

Core Components: PLC

Application: Architecture, Furniture, Automobile, Household Appliance, Solar Energy

Productivity (loads/h): 14-31

Heating Method: Electric Heating-Jet Convection

Installed Capacity: 800kVA, 1000KVA, 1250kVA

Max Loading Dimension: According to your requirements

Glass thickness: 4-19mm

ARC: 350-3000

Usage: Making Tempered Glass

Product name: Bi-directional automatic flat and bend glass tempering furnace

Tempering type: Flat and Bent Tempering Furnace

Основная информация

Оплата и доставка Условия

Packaging Details: LandGlass Building glass making machinery tempered glass machine size small Package details: In containers. To be packed in standard export packing-suitable for long-distance shipping.Glass tempering furnace will be packed separately and it will be assembl

Supply Ability: 20 Set/Sets per Month tempered glass making machine

Характер продукции

Product Description

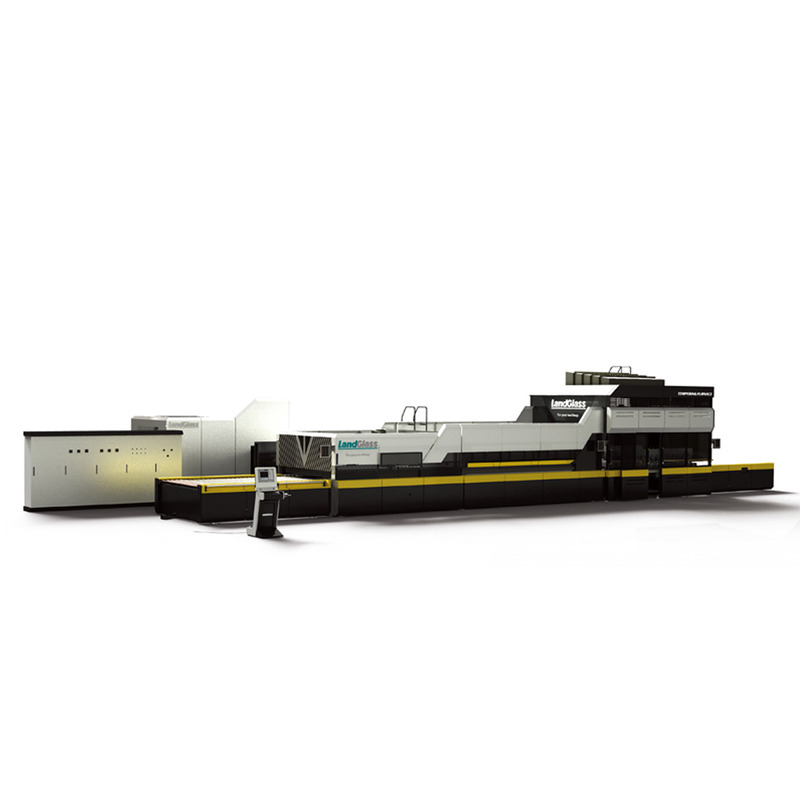

LandGlass bidirection flat and bent architectural building clear low e glass tempering and bending machine

1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

2. Hard-shaft bending roller technology bends glass lengthwise.

3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.

4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.

Model	A2023B10/2J+	A2436B15/2J+	A2442B18/2J+	A2460B25J+	A2850B25J+
Flat Max Dimension	2000x3000	2440x3600	2440x4200	2440x6000	2800x5000
Singel Curvature Max Dimension	2000xARC1000	2440xARC1500	2000xARC1800	2440xARC2500	2800xARC2500
Flat Min Dimension	150x350	150x350	150x350	150x350	200x400
Single Curvature Min Dimension	200xARC350	300xARC400	300xARC400	300xARC500	500xARC600
Thickness	4-19	4-19	4-19	4-19	4-19
Productivity	27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass)	27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass)	27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass)	14-16(5mm clear glass) 12-14(5mm 0.08Low-e glass)	14-16(5mm clear glass) 12-14(5mm 0.08Low-e glass)
Installed Capacity	800kVA	800kVA	1000kVA	1250kVA	1250kVA

Architecture&Furniture, Automobile Industries and Household Appliances, etc.

Glass Can Be Tempered:

On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.

Heating Mode:

Forced convection heating on the top and bottom.Airstream and Superair are also optional.

Detailed Images

The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

LD-AB JetConvection Plus^TM Flat & Bent Bi-Directional Glass Tempering Furnace adopts JetConvection Plus^TM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

Company Profile

LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.

R&D

After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.

Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.

Service

Pre-sale Service

LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:

1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.

2. Help the customer choose other glass processing machines.

3. Help the customer arrange all the glass processing machines in the workshop.

4. Arrange visits to other glass processing companies.

After-sale Service

LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:

① Remote diagnosis to provide zero-distance service;

② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);

③ Employing foreign employees to get rid of visa restraints;

④ Preventive maintenance service and active communication.

Packing & Delivery

Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.

Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.

Customer and partner

LandGlass around the world

At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.

The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.

If you are interested in our glass tempering furnace, please feel free to contact us.
