Durable Glass Washing Machine Glass Washing Machine For Washing Machine Door Toughened Glass

Durable Glass Washing Machine Glass Washing Machine For Washing Machine Door Toughened Glass
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Основная информация
Оплата и доставка Условия
Характер продукции
Products Description

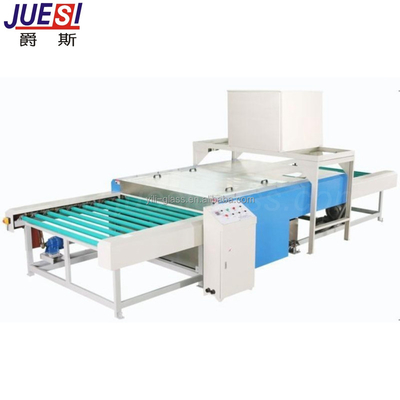

Small Glass Washing And Dyring Machine

This machine is designed for washing and drying
of flat glass through flat transmission. Convey roller, inlet section, washing section, drying section and unloading section.
Glass washing machine is used for the flat glass washing and drying. It's a necessary equipment for glass processing enterprise. Have complete section; include common glass, coated glass and LOW-E glass section. Washing and drying part can overall lifting, have digital display, also can according to customer requirement for decide.
Specification
Machine Model
JSWJSW500
JSW1200
JSWD1600
JSWD2000
JSWD2500
Max Size
500mm
1200mm
1600mm
2000mm
250mm
Min Size
30mm
250*250mm
360*360mm
360m*360mm
360mm*360mm
Working Speed
0-6.5m/min
0-6.5m/min
0--6.5m/min
0-10m/min optional
0--6.5m/min
0-10m/min optional
0-6.5m/min
0-10m/min optional
Glass Thickness
2-19mm
2-19mm
2-19mm
2-19mm
2-19mm
Machine Type
Sponge Roller
Sponge Roller
Air Knife
Air Knife
Air knife
Glass Type
Normal
Normal
Normal +LOWE
Normal +LOWE
Normal +LOWE
Product Description
Air Knife for fast drying
Drying part, air drying system equip two pairs of air knife, a pair of straight air knife and skew air knife cooperate application.
High speed washing machine will adpot 3 pairs of air knifes.

High pressure blower can completely drying the glass surface, large lateral wind power, good air drying effect.(two cold wind air knife, no need to heat).

Machine transmission are adopt vulcanized rubber cover roller structure

Lifting system

can washing the hard LOW-E glass, common coated glass and sunshine coated glass, when
washing the coated glass, two pairs of strong hairbrush can though the air cylinder raise up, will never hurt the coated surface.

brush roller(φ150mm)

Equip 3pairs of brush roller(φ150mm)

Removable Strainless Steel
Water tank

The machine those are contacting water are made by Stainless steel

The metal parts of the washing section which are contact with water, all adopt stainless material, with circulating pump, water tank can pull out washing, have three levels washing, when request the higher washing effect, two sets of hairbrush roller at
behind have to use running water(purified water can get the better effect).

Machine transmission are adopt vulcanized rubber cover roller structure (prohibit acidic liquid get in touch), washing part,drying part whole lifting automatically, the maximum lift range is 400mm, in order to adapt washing different glass thickness,continence for cleaning and replace the hairbrush
Recommend Products
Company Profile
About Juesi Glass Machinery
JUESI Glass Machinery is striving for providing global buyers with the high-end glass machine and quality one-stop service.
For the past 15 years, we have been dedicated to the glass machine industry, our personal serves buyers from all over the world, we have
earned good reputation and credibility from many glass processing enterprises who are willing to participate in building the
long-term business partnership with JUESI and to make more achievements.
Exhibition
Packing & Delivery
Our company has a long export history and rich experience in loading containers to ensure that the machine is delivered to your factory in good condition.
